HI2020F edge™ Fullpack - pH/DO/EC/TDS/NaCl/°C Meter including 3 Electrodes

Product Code : HI2020F

Category : Benchtop

Catalog : sorry not ready

Product information "HI2020F edge™ Fullpack - pH/DO/EC/TDS/NaCl/°C Meter including 3 Electrodes"
DESCRIPTION: Hanna Instruments is proud to introduce the world’s most innovative pH, EC, and DO meter... edge™.

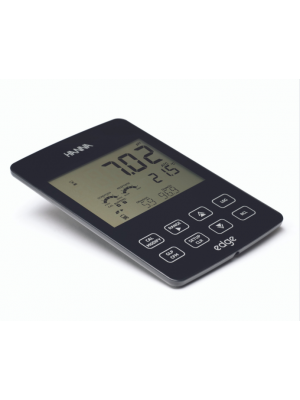

edge is thin and lightweight, measuring just 1?2” thick and weighing less than 9 ounces. edge has an incredibly wide viewing angle, 5.5” LCD and a sensitive capacitive touch keypad. edge measures pH, conductivity and dissolved oxygen through its unique digital electrodes.

These digital electrodes are auto-recognized. Providing sensor type, calibration data and serial number when connected to edge with an easy to plug-in 3.5mm connector. edge’s versatile design is equally at home in your hand, on a lab bench or mounted on a wall. It simplifies measurement, configuration, calibration, diagnostics, logging and transferring data to a computer or a USB drive.

edge features Hanna’s exclusive CAL-CHECK® to warn you if the pH electrode you are using is not clean or if your buffers are contaminated during calibration. Indicators are also displayed for response time and probe condition that is based on the offset and slope of the electrode. We have also added to SENSOR-CHECK for sensors with matching pin: now it warns you if the pH bulb is cracked or if the junction of the electrode is clogged. edge is the culmination of Hanna’s vision, design capabilities, integrated production facilities, and world class R&D teams.

With edge, Hanna has set the new standard! FEATURES/BENEFITS:

Thin, Lightweight Design
Multiparameter (ability to measure pH, EC or DO)
pH Electrode Monitoring Technology (Sensor Check and Cal Check)
Multiple Calibration Points
Built-in Temperature Sensor on all Electrodes
Log on Demand
Large, easy to read LCD
Capacitive Touch
Dual USB ports
GLP feature
Rechargeable Battery


Thin, Lightweight Design – edge is incredibly thin and lightweight, measuring just 0.5” thick and weighing just 8.8 ounces. It takes up very little space and is easy to carry.

Versatile – edge is highly versatile. It can be setup in a laboratory on a benchtop (with its included cradle), attached to a wall (with the included wall mount) or carried by hand like a portable meter. This convenient design makes edge perfect for nearly any environment.

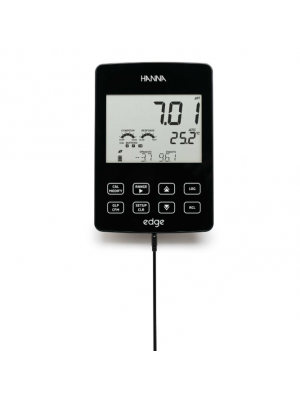

Zero Footprint – Using the included wall mount, edge can be placed on a wall, leaving zero footprint on your valuable benchtop space.

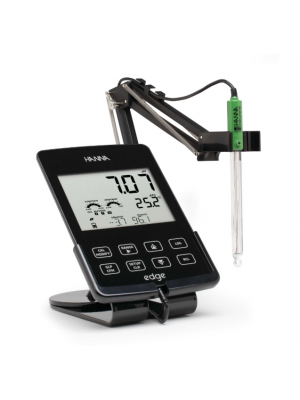

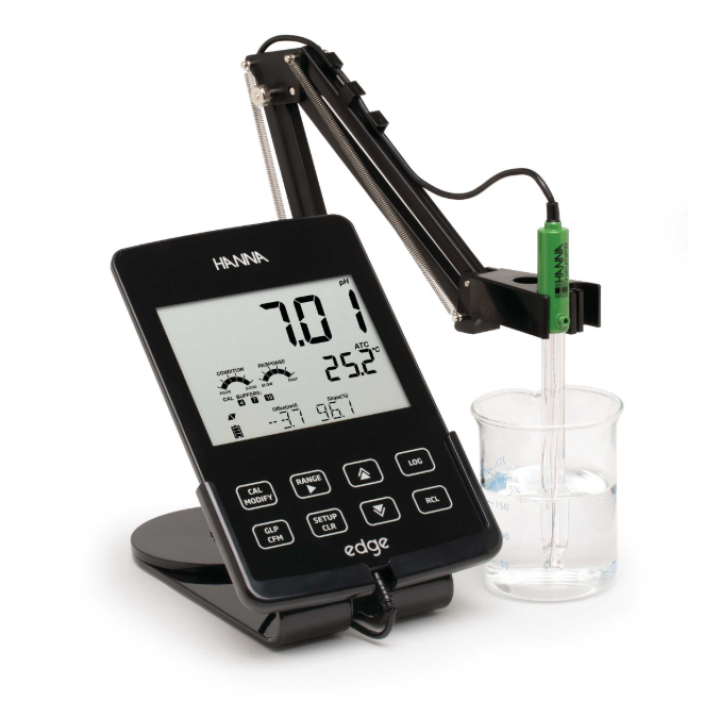

Multipurpose Benchtop Cradle – The included benchtop cradle is engineered to serve multiple purposes. It not only houses edge, but acts as a charging station and swivel style electrode holder.

Large, Easy to Read LCD – edge features an LCD that measures 5.5” and is clearly viewable from over 5 meters. Add to that a wide viewing angle of 150 degrees and you have one of the clearest LCD’s in the industry.

Clear, Full Text Messages – In addition to its large LCD, edge also features clear, full text guides displayed on the bottom of the screen. There is no need to decipher scrambled abbreviations; these helpful messages guide you through the measuring process quickly and easily.

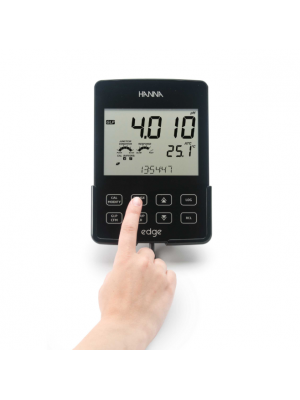

Capacitive Touch – edge features sensitive capacitive touch buttons for accurate keystrokes when navigating edge’s menus and screens. Since they are part of the screen, the buttons can never get clogged with sample residue.

Digital Electrodes – You never have to worry about the right angle or aligning pins correctly with edge Digital Electrodes. They feature an easy to connect design with a round, digital connection that plugs in quickly and easily, yet firmly. They are also easy to exchange when you want to change from measuring pH, DO or EC to another parameter.

Dual USB Ports – edge can be connected to a computer or USB flash drive for transferring logged data. It can also be charged while plugged into a powered USB port.


Multiparameter – edge is a highly accurate multiparameter meter capable of measuring pH, DO (dissolved oxygen), and EC (electrical conductivity). Just switch electrodes* to change the parameter you need to measure.

Digital Sensors – edge features special electrodes that have an easy to plug-in connection and built-in temperature sensor. All sensors are automatically recognized when connected to the edge. When a sensor is connected data including serial number and calibration information is transferred.

Sensor CheckTM – Reliable, properly working electrodes are one of the keys to accurate measurements, so Hanna helps you determine the status of your electrode with Sensor Check. Sensor Check monitors your pH electrodes, providing real-time status of both the junction and glass. It essentially tells you when there are problems such as cracked glass or dirty, clogged junctions.

Cal CheckTM – Cal Checkalerts users to potential problems during the calibration of the pH electrode. Indicators include “Electrode Dirty/Broken”, “Buffer Contaminated”, electrode response time and the overall probe condition as a percentage that is based on the offset and slope characteristics.

Built-in Temperature Sensor – edge features a built-in temperature sensor to compensate for differences in temperature.No need to plug in a separate temperature sensors, one connection and one electrode does it all.

Multiple Calibration Points – edge features multiple calibration points to increase measurement accuracy. The pH electrode can be calibrated up to 5 points while both DO and EC offer two point calibration.

Log on Demand – Log data on up to 1000 samples. All readings include date, time and GLP Data that can be transferred to a USB flash drive or to a PC (Windows or Mac).

GLP Feature – edge includes a GLP Feature thatallows users to view calibration data, probe ID, and calibration expiration information for the sensor being used. GLP data for pH electrodes include date, time, buffers used for calibration, and offset and slope characteristic.

Ordering Information:

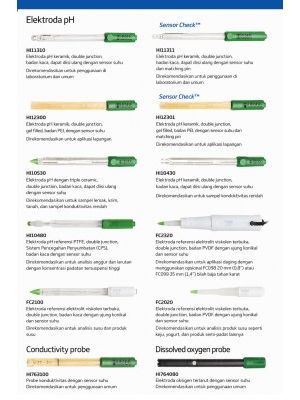

Delivered with HI763100 digital conductivity electrode (4ring, platinum), pH electrode HI11310 glass, HI764080 polarographic oxygen probe, stand, electrode holder and instructions.

pH Specifications
pH Range -2.000 to 16.000 pH, -2.00 to 16.00 pH, ±1000 mV
pH Resolution 0.001 pH, 0.01 pH, 0.1 mV
pH Accuracy (@25ºC/77ºF) ±0.2 mV, ±0.01 pH, ±0.002 pH
pH Calibration 5 points (Standard mode)? 1.68, 4.01 (3.00†), 6.86, 7.01, 9.18, 10.01, 12.45, and two custom buffers; 3 points (Basic mode) 4.01; 6.86; 7.01; 9.18; 10.01
pH Temperature Compensation ATC: -5.0 to 100.0ºC; 23.0 to 212.0°F*
EC Specifications
EC Range 0.00 to 29.99 ?S/cm, 30.0 to 299.9 ?S/cm, 300 to 2999 ?S/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (absolute EC)**
EC Resolution 0.01 ?S/cm, 0.1 ?S/cm, 1 ?S/cm, 0.01 mS/cm, 0.1 mS/cm
EC Accuracy (@25ºC/77ºF) ±1% of reading (±0.05 ?S/cm or 1 digit, whichever is greater)
EC Calibration 1 point offset calibration (0.00 ?S/cm in air), 1 point slope calibration in EC standard 84 ?S/cm, 1413 ?S/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 111.8 mS/cm
EC Temperature Compensation ATC (0.0 to 100.0ºC; 32.0 to 212.0 °F), NoTC
TDS Specifications
TDS Range 0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150 to 1499 ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L (absolute TDS)**, with 0.80 conversion factor
TDS Resolution 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L
TDS Accuracy (@25ºC/77ºF) ±1% of reading (±0.03 ppm or 1 digit, whichever is greater)
TDS Calibration through EC calibration
TDS Conversion Factor 0.40 to 0.80
Salinity Specifications
Salinity Range 0.0 to 400.0% NaCl, 2.00 to 42.00 PSU, 0.01 to 42.00 PSU, 0.0 to 80.0 g/L*
Salinity Resolution 0.1% NaCl, 0.01 PSU, 0.01 g/L
Salinity Accuracy (@25ºC/77ºF) ±1% of reading
Salinity Calibration 1 point with HI 7037L 100% NaCl sea water standard (other scales through EC calibration)
DO Specifications
DO Range 0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation
DO Resolution 0.01 ppm, 0.1% saturation
DO Accuracy ±1 digit, ±1.5% of reading
DO Calibration one or two points at 0% (HI 7040 solution) and 100% (in air)
DO Temperature Compensation ATC: 0 to 50 ºC; 32.0 to 122.0 °F
Salinity Compenstaion 0 to 40 g/L (with 1 g/L resolution)
DO Altitude Compensation -500 to 4000 m (with 100 m resolution)
Temperature Specifications
Temperature Range -20.0 to 120.0 ºC, -4.0 to 248.0 °F
Temperature Resolution 0.1 °C, 0.1 °F
Temperature Accuracy ±0.5 °C, ±0.9 °F
Additional Specifications
pH Electrode Diagnostics Glass and reference junction diagnostics ( HI 11311 & HI 12301 only), out of calibration range , probe condition, response time
Logging up to 1000*** records organized in: Manual log-on-demand (Max. 200 logs), Manual log-on-stability (Max. 200 logs), Interval logging *** (Max. 600 samples; 100 lots)
Connectivity 1 micro USB port for charging and PC connectivity, 1 USB port for storage
Environment 0 to 50°C (32 to 122°F), RH max 95% non-condensing
Battery Type/Life Built-in rechargeable battery with up to 8 hours of continuous use
Power Supply 5 VDC adapter (included)
Dimensions 202 x 140 x 12.7mm (8” x 5.5” x 0.5”)
Weight 250 g (8.82 oz)

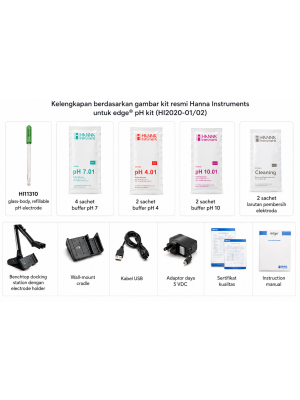

Ordering Information HI2020 pH kit includes: HI11310 glass body, refillable pH electrode with temperature sensor, pH 4 buffer solution sachets, pH 7 buffer solution sachets, pH 10 buffer solution sachets, electrode cleaning solution sachets,USB cable, benchtop docking station with electrode holder, wall mount cradle, 5 VDC power adapter, instruction manual, and quality certificate.

* temperature limits will be reduced to actual probe/sensor limits
** with temperature compensation function disabled
*** for standard mode only
