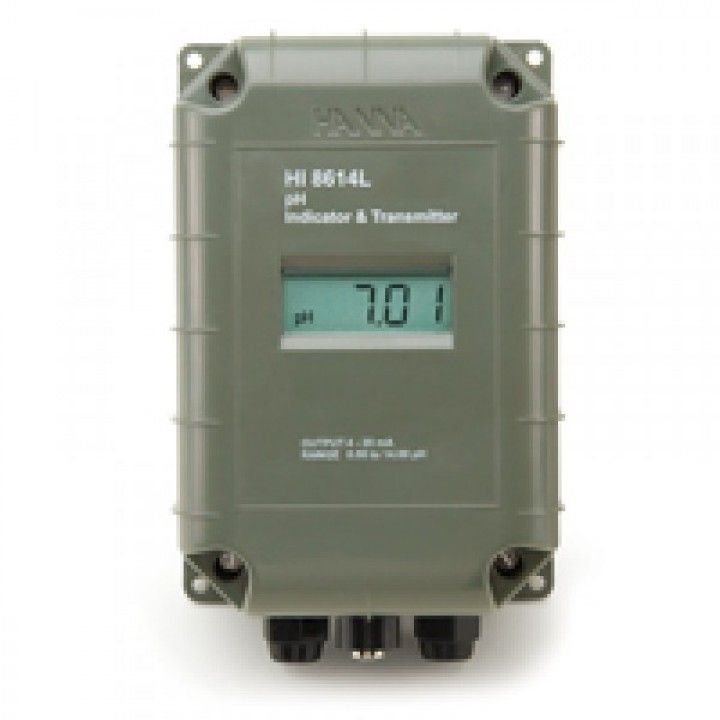

HI8614LN pH - Transmitter with LCD, 4 to 20 mA Ouput

Product Code : HI8614LN

Category : Controllers

Catalog : sorry not ready

Product information "HI8614LN pH - Transmitter with LCD, 4 to 20 mA Ouput"



Water resistant
Loop powered
Automatic Temperature Compensation
LCD Screen



The HI 8614LN is a water-resistant pH transmitter is designed to be used with a standard high impedance pH probe with BNC connector. The signal is then processed by a special high-impedance amplifier, which transmits an output current directly proportional to the input signal but independent of changes in load or cable capacitance.

Calibration is performed by the adjustment of two independent trimmers — slope and offset.

Temperature compensation is performed by the transmitter's ATC (Automatic Temperature Compensation) circuitry when measurements are taken with a temperature probe attached; if ATC is not required, it is also possible to substitute a fixed resistor for the temperature probe. The transmitter can be connected to HANNA controller HI 8510, HI 8710 or HI 8711, recorders, computers or any data monitoring device that accepts 4 to 20 mA input.



Order Information:
HI 8614LN (with display) is supplied with instructions.



Specification :
Range 0.00 to 14.00 pH; 4–20 mA
Resolution 0.01 pH; 0.01 mA
Accuracy @ 20°C ±0.02 pH; ±0.02 mA
Calibration offset: ±2 pH; ±2.2 mA; slope: 86 to 116%; ±0.5 mA
Temperature
Compensation fixed or automatic from 0 to 100°C (32 to 212°F) with HI 76608 probe
Input Impedance 1012 Ohm
Recorder Output 4-20 mA (isolated)
Protection IP65
Power Supply 20-36 VDC
Load max 500 Ohm
Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Dimensions 165 x 110 x 71 mm (6.5 x 4.3 x 2.8’’)
Weight 1 kg (2.2 lb.)
