HI2202 - pH Meter and HALO™ pH Probe with Bluetooth® Smart Technology - No Cable

Product Code : HI2202

Category : Agriculture

Catalog : sorry not ready

Product information "HI2202 - pH Meter and HALO™ pH Probe with Bluetooth® Smart Technology - No Cable"
Bluetooth Smart Technology
HI11102 HALO pH electrode uses Bluetooth Smart Technology (Bluetooth 4.0). This technology offers low power consumption allowing for a long, 500-hour battery life. The range of the Bluetooth connection is 10 meters (33’) between the probe and receiving device.
Auto-Detection
At a push of the button, the HI11102 HALO pH electrode places the probe in discovery mode and will be detected by edgeblu. Once connected, the serial number, calibration information including date, time and buffers used, and the electrode specifications will be loaded into the meter. Having this information stored in the electrode allows for hot swapping to other pH electrodes without recalibrating. The details of the electrode and calibration information are stored with any logged readings.
pH Electrode Design
The HI11102 HALO pH electrode is a glass body, gel filled, double junction pH electrode that has an indicating probe made with general purpose glass. The glass body is resistant to many chemicals and easy to clean. Being gel filled reduces maintenance since there are no fill solutions to add. The double junction design is suitable for a variety of solutions that can contain substances such as heavy metals or Tris buffer that will cause the silver chloride (AgCl) found in a single junction probe to precipitate and clog the junction. The general purpose glass indicating probe has a temperature range of use from -5.0 to 80.0°C (23.0 to 176.0°F) and for samples that have a 0 to 12 pH.
Built-In Temperature Sensor
The HI11102 HALO pH electrode features a built-in thermistor temperature sensor that is in the tip of the indicating pH electrode. A thermistor temperature sensor provides for a high accuracy temperature reading and should be as close as possible to the indicating pH electrode in order to compensate for the effect that temperature has on the change in resistance of the glass. By having an accurate reading it is possible to provide a temperature compensated reading.
pH Specifications
pH Range -2.000 to 16.000 pH (Standard Mode), -2.00 to 16.00 pH (Basic Mode), ±1000 mV
pH Resolution 0.001 pH, 0.01 pH, 0.1 mV
pH Accuracy (@25ºC/77ºF) ±0.2 mV, ±0.01 pH, ±0.002 pH
pH Calibration 5 points (Standard mode)? 1.68, 4.01 (3.00†), 6.86, 7.01, 9.18, 10.01, 12.45, and two custom buffers; 3 points (Basic mode) 4.01; 6.86; 7.01; 9.18; 10.01
pH Temperature Compensation ATC: -5.0 to 100.0ºC; 23.0 to 212.0°F*




Temperature Specifications
Temperature Range -20.0 to 120.0 ºC, -4.0 to 248.0 °F
Temperature Resolution 0.1 °C, 0.1 °F
Temperature Accuracy ±0.5 °C, ±0.9 °F
°C/°F Yes
Additional Specifications
GLP Yes
Logging stores up to 1000 records: 200 records (log-on-demand and stability logging)
Connectivity 1 micro USB port for charging and PC connectivity, 1 USB port for storage
Environment 0 to 50°C (32 to 122°F), RH max 95% non-condensing
Power Supply 5 VDC adapter (included)
Dimensions 202 x 140 x 12 mm (7.9” x 5.5” x .05”)
Weight 250 grams (8.82 oz.)

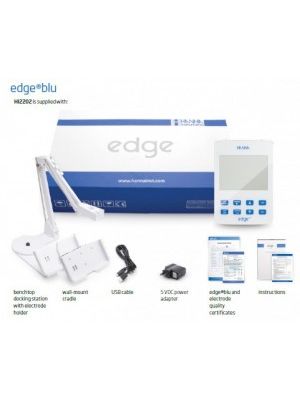

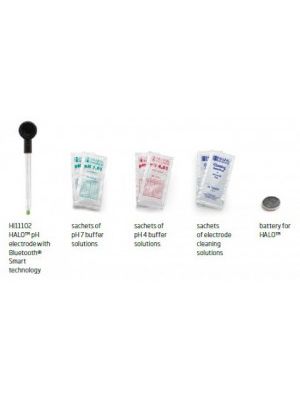

Ordering Information HI2202 edge® blu includes benchtop docking station with electrode holder, wall mount cradle, USB cable, HI11102 glass body, gel filled pH electrode with temperature sensor, pH 4 buffer solution sachets, pH 7 buffer solution sachets, pH 10 buffer solution sachets, electrode cleaning solution sachets, 5 VDC power adapter, instruction manual and instrument quality certificate.
Notes * temperature limits will be reduced to actual probe/sensor limits
** with temperature compensation function disabled
† pH 3.00 is only visible when using specific pH electrodes and will replace pH 4.01 buffer
Electrode Specifications
Reference double, Ag/AgCl
Junction / Flow Rate ceramic
Electrolyte gel
Tip Shape spheric
Connection Bluetooth Smart (Bluetooth 4.0), 10 m (33') range
Recommended Operating Temperature -5 to 80°C (23 to 176°F)
Temperature Sensor integrated
Body Material glass

Hanna Lab App Specifications
Range -2.000 to 16.000 pH / ±800 mV / -20.0 to 120.0 ºC *(will be reduced to actual probe/sensor limits)
Resolution 0.1, 0.01, 0.001 pH / 1, 0.1 mV
Accuracy (@25ºC/77ºF) ±0.005 pH / ±0.3 mV
Calibration Points Up to five points with seven standard buffers
Calibration Buffers 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH
Temperature Compensation Automatic from -5.0 to 100.0 ºC / 23.0 to 212.0 ºF *(will be reduced to actual probe/sensor limits)
Compatibility/System Requirements iPad 3rd generation or newer, iPhone 4S or newer, and iPod Touch 5th generation or newer with Bluetooth® 4.0 technology and running iOS 8.0
