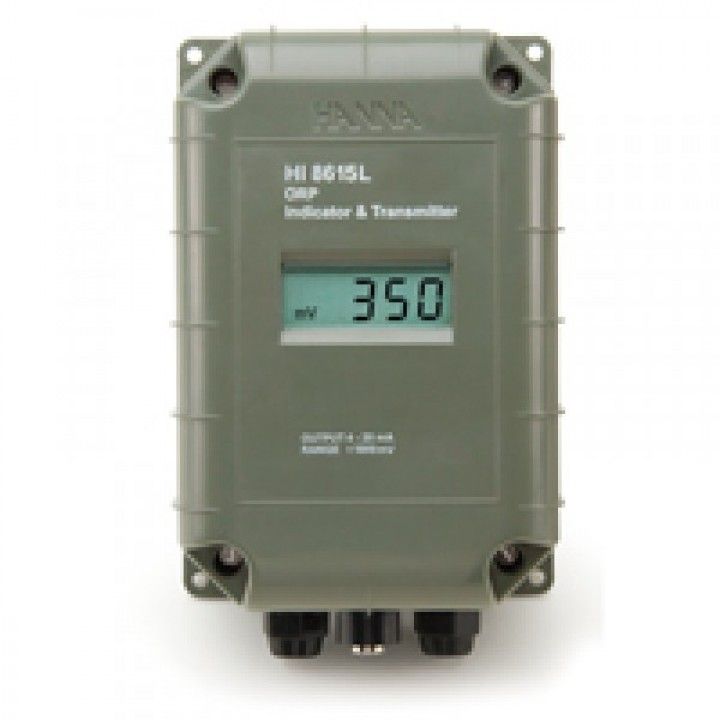

HI8615LN ORP - Transmitter with LCD, 4 to 20 mA Ouput

Product Code : HI8615LN

Category : Industrial

Catalog : sorry not ready

Product information "HI8615LN ORP - Transmitter with LCD, 4 to 20 mA Ouput"

Universal BNC connector for quick connections

Rugged ABS casing
Loop powered
LCD screen

The HI 8615 has been designed for transmitting ORP measurements from remote locations.

This improved transmitter features two controls (one for 4 mA and one for 20 mA) to compensate for electronic drift and ambient temperature.

The HI 8615 uses a universal BNC socket for quick and secure connection of any ORP electrode with a BNC connector.

An IP65 rating and a rugged ABS casing provide optimum protection even in harsh environments making this instrument ideal for chromium hexavalent reductions and water sanitation. The transmitter can be connected to HANNA meters HI 8512, HI 8720 or any recorders, PC’s or data monitors that accept 4 to 20 mA input.

Order Information:
HI 8615LN (with display) is supplied with instructions.

Specification :
Range ±1999 mV; 4–20 mA
Resolution 1 mV; 0.01 mA
Accuracy @ 20°C ±5 mV; ±0.02 mA
Calibration offset: ±100 mV; ±0.8 mA; slope: 90 to 110%; ±0.8 mA
Input Impedance 1012 Ohm
Recorder Output 4-20 mA (isolated)
Protection IP65
Power Supply 20-36 VDC
Load max 500 Ohm
Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Dimensions 165 x 110 x 71 mm (6.5 x 4.3 x 2.8’’)
Weight 1 kg (2.2 lb.)
