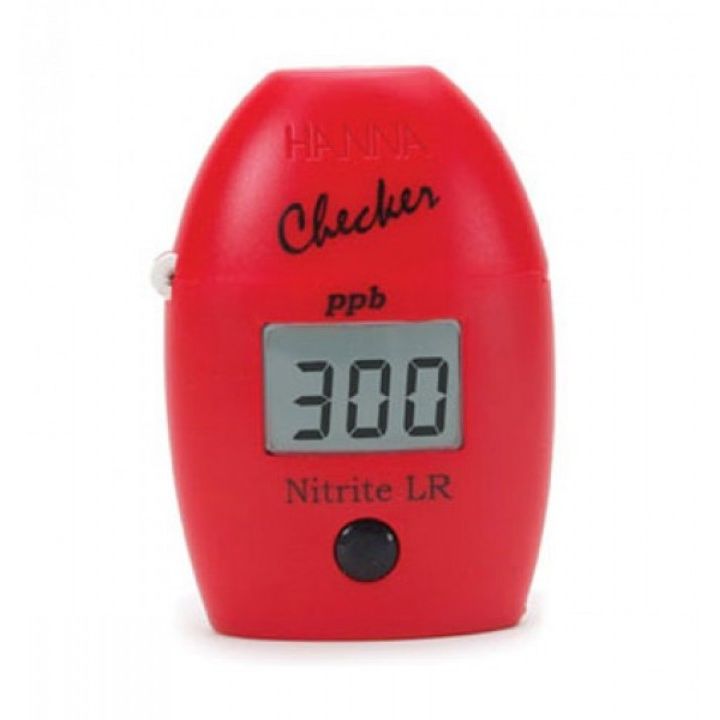

Product information "HI707 Checker HC ® - Nitrite, LR"
The HI 707 Checker®HC is a simple, accurate, and cost effective way to measure low ranges of nitrite. Designed as a more accurate alternative to chemical test kits, the HI 707 provides quick, accurate results in four easy steps.
The HI 707 uses an adaptation of EPA diazotization method 354.1. The reaction between nitrite and the reagent causes a pink tint in the sample.
Order Information: The HI 707 Checker®HC is supplied with 2 cuvettes and caps, reagent starter kit (6 packets of nitrite LR reagent), 1 x 1.5V AAA battery, and an instruction manual.
Range 0 to 600 ppb NO2 -N
Resolution 1 ppb
Accuracy (@25°C/77°F) ±20 ppb ± 5% of reading
Measurement Method Colorimetric
Light Source Photodiode @470 nm
Light Detector Silicon photocell
Method Adaptation of EPA diazotization method 354.1. The reaction between nitrite and the reagent causes a pink tint in the sample.
Power Supply 1 x 1.5V AAA battery
Power Auto Off After 10 min. of inactivity
Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Dimensions 81.5 x 61 x 37.5 mm (3.2 x 2.4 x 1.5”)
Weight 64 g (2.25 oz.)
