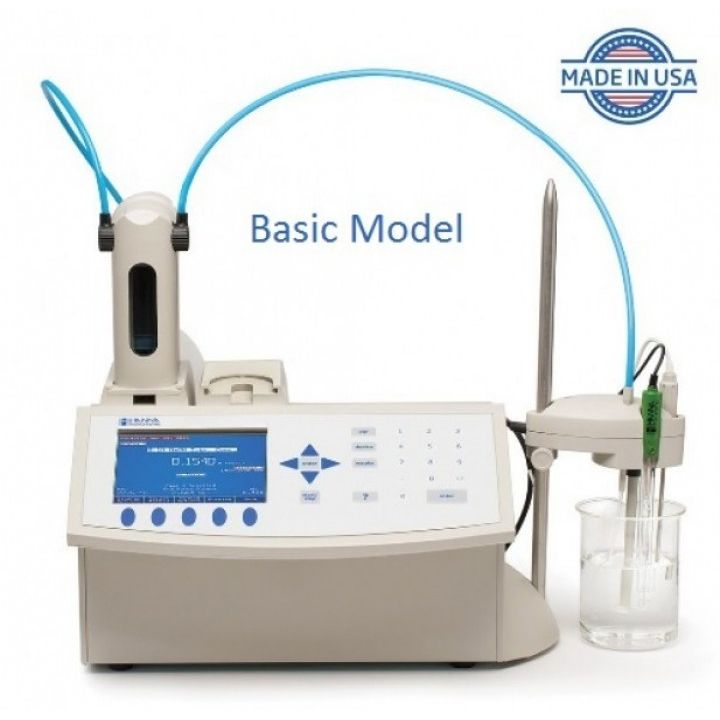

Product information "HI901C - Low Cost Color Titration System - Potentiometric (pH/mV/ISE)"
A high-performance titrator made simple.
Focus on your most essential titrations and get high-quality results with our HI901C automatic titrator.
Get the most out of one device.
Titrate for a variety of measurements including acids, bases, redox, and selective ions. With no additional programming upgrades to purchase, you can start measuring right away.
Each titrator can store up to 100 customizable methods of analysis to accommodate any of your different samples or procedures.
If lab space is scarce, our titrator doubles as a benchtop meter for direct pH, redox, and ion selective measurements.
Configure your HI901C.
Our autotitrator is configurable to your needs. Contact us at 6296-7118 for more information.
Change reagents without worry.
Our exchangeable Clip Lock™ burette system helps you conveniently separate and switch between your reagents so you don’t have to be concerned about cross-contamination.
Be confident in your results.
Our unmatched 40,000 step piston driven dosing pump is capable of dosing extremely small and highly accurate volumes of reagent, helping you achieve a very precise endpoint.
Precision is key.
A dynamic dosing algorithm allows for timely and accurate titration results by providing larger doses near the beginning of a titration and smaller, more precise doses near the titration endpoint.
Highlight your most important information.
Final reports are customizable so you can make sure you are viewing and storing your most important information.
Safeguard the integrity of your data.
Our software allows you to record full GLP (Good Laboratory Practice) data so there is no need to compromise the quality of your results.
Move your information easily across devices.
Use our software or a USB to conveniently transfer files between your titrator and computer.
pH Range -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH
pH Resolution 0.1; 0.01; 0.001 pH
pH Accuracy (@25ºC/77ºF) ±0.001 pH
pH Calibration up to five-point calibration, eight standard buffers and five custom buffers
mV Range -2000.0 to 2000.0 mV
mV Resolution 0.1 mV
mV Accuracy (@25ºC/77ºF) ±0.1 mV
mV Calibration single-point offset
ISE Range 1•10?? to 9.99•10¹?
ISE Resolution 1; 0.1; 0.01
ISE Accuracy ±0.5% monovalent; ±1% divalent
ISE Calibration up to five-point calibration, seven standard solutions and five user-defined standards
**List of ISE (Ion Selective Electrodes) available. Click here
Temperature Range -5.0 to 105.0°C; 23.0 to 221.0°F; 268.2 to 378.2K
Temperature Resolution 0.1°C; 0.1°F; 0.1K
Temperature Accuracy (@25ºC/77ºF) ±0.1°C; ±0.2°F; ±0.1K, excluding probe error
Temperature Compensation manual (MTC) or automatic (ATC)
Programmable Stirrer overhead propeller type, 200 to 2500 rpm, resolution 100 rpm
Display 5.7” (320 x 240 pixel) backlit color LCD
Burette Sizes 5, 10, 25, and 50 mL
Burette Resolution 1/40000
Display Resolution 0.001 mL
Dosing Accuracy ±0.1% of full burette volume
Methods up to 100 methods (standard and user-defined)
Logging Data up to 100 titration and pH/mV/ISE reports
Burette Auto-Detection burette size is automatically recognized when inserted into the unit
Flow Rate user-selectable from 0.1 mL/min to 2 x burette volume/min
Endpoint Determination single equivalence point (1st or 2nd derivative) or fixed pH/mV value
Potentiometric Titrations acid/base (pH or mV-mode), redox, precipitation, complexometric, non-aqueous, ion-selective, argentometric
Measurement Units user-specified expression of concentration units to suit specific calculation requirements
Real-Time & Stored Graphs mV-volume or pH-volume titration curve, 1st derivative curve or 2nd derivative curve; pH mode, mV mode or ISE mode: pH/mV/concentration versus time
USB Host (Side) flash drive compatibility for transfer of methods and reports
Peripherals (Rear) connections for VGA display, PC-keyboard, parallel printer, USB device input, RS232
GLP Conformity instrumentation data storage and printing capabilities
Languages English, Portuguese, Spanish
Operating Environment 10 to 40°C (50 to 104°F), up to 95% RH
Storage Environment -20 to 70°C (-4 to 158°F), up to 95% RH
Power Supply 100-240 VAC; "-01" models, US plug (type A); "-02" models, European plug (type C)
Dimensions 390 x 350 x 380 mm (15.3 x 13.8 x 14.9 in)
Weight approximately 9 kg (20 lbs.) (with one pump, stirrer and sensors)
Ordering Information HI901C1 includes titrator with one analog board, overhead propeller stirrer with stand, 25 mL glass burette, dosing pump, temperature sensor, USB cable, 256 MB USB flash drive and PC software.
HI901C2 includes titrator with two analog boards, overhead propeller stirrer with stand, 25 mL glass burette, dosing pump, temperature sensor, USB cable, 256 MB USB flash drive and PC software.
The 901C is customizable and does not come with an electrode. Please contact Hanna Instruments for a free consultation so we can best meet your needs.
