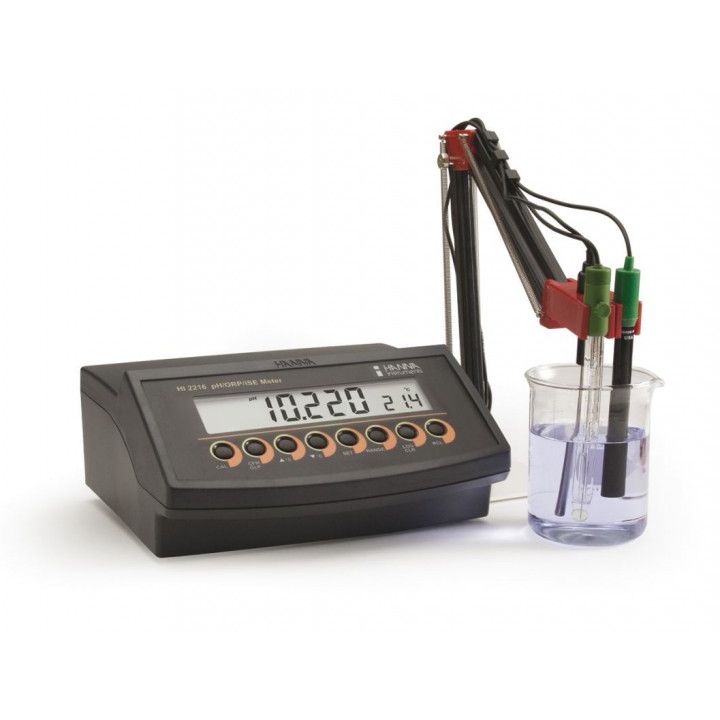

HI2216 pH / ORP / ISE / °C Meter / 5-Point Calibration; Resolution 0.001 + PC Interface

Product Code : HI2216

Category : Sodium

Catalog : sorry not ready

Product information "HI2216 pH / ORP / ISE / °C Meter / 5-Point Calibration; Resolution 0.001 + PC Interface"

The HI 2216 is a pH, ORP, ISE meter with five point pH calibration and 0.001 pH resolution.

This instrument provides GLP capabilities to allow for the storage and retrieval of all data regarding pH, ORP, and ISE calibration.

HI 2216 can perform measurements using ORP electrodes in the mV scale and ISE electrodes in the ppm scale through the pH channel input. A relative mV feature is also provided.



Order Information: HI 2216-02 (230V) is supplied with HI 1131B pH electrode, HI 7662 temperature probe, HI 76404N electrode holder, HI 70004 pH 4.01 buffer solution sachet, HI 70007 pH 7.01 buffer solution sachet, HI 7071S electrolyte solution (30 mL), HI 700661 cleaning solution sachet, 12 VDC adapter and instructions.


Specification :
Range pH –2.0 to 16.0 pH; –2.00 to 16.00 pH; –2.000 to 16.000 pH
mV ±999.9 mV (ORP); ±2000 mV (ORP)
ISE 0.001 to 19990 ppm
Temperature –20.0 to 120.0 ºC (-4.0 to 248.0ºF)
Resolution pH 0.1 pH; 0.01 pH; 0.001 pH
mV 0.1 mV (±999.9 mV); 1 mV (±2000 mV)
ISE 0.001 (to 1.999 ppm); 0.01 (to 19.99 ppm); 0.1 (to 199.9 ppm); 1 (to 1999 ppm); 10 (to 19990 ppm)
Temperature 0.1 ºC
Accuracy (@ 20ºC/68ºF) pH ±0.1 pH; ±0.01 pH; ±0.002 pH
mV ±0.2 mV (±999.9 mV); ±1 mV (±2000 mV)
ISE ±0.5% FS
Temperature ±0.2ºC (excluding probe error)
Relative mV Offset ±2000 mV
pH Calibration automatic, up to five point calibration with seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45), and two custom buffers
ISE Calibration automatic, one or two points with five available buffers (0.1, 1, 10, 100, 1000 ppm)
Temperature Compensation manual or automatic (with HI 7662 probe) from –20.0 to 120.0 ºC (-4.0 to 248.0ºF)
pH Electrode HI 1131B glass body pH electrode with BNC connector and 1 m (3.3’) cable (included)
Temperature Probe HI 7662 stainless steel temperature probe with 1 m (3.3’) cable (included)
Input Impedance 1012 ohm
PC Connectivity opto-isolated USB
Data Logging log on demand, 200 records; autologging, 500 records
Logging Interval stability logging (“StAb”) 5, 10, 30 seconds; 1, 2, 5, 10, 15, 30, 60, 120, 180 minutes
Power Supply 12 VDC adapter (included)
Environment 0 to 50°C (32 to 122°F); RH max 95%
Dimensions 235 x 222 x 109 mm (9.2 x 8.7 x 4.3”)
Weight 1.3 Kg (2.9 lb.)
