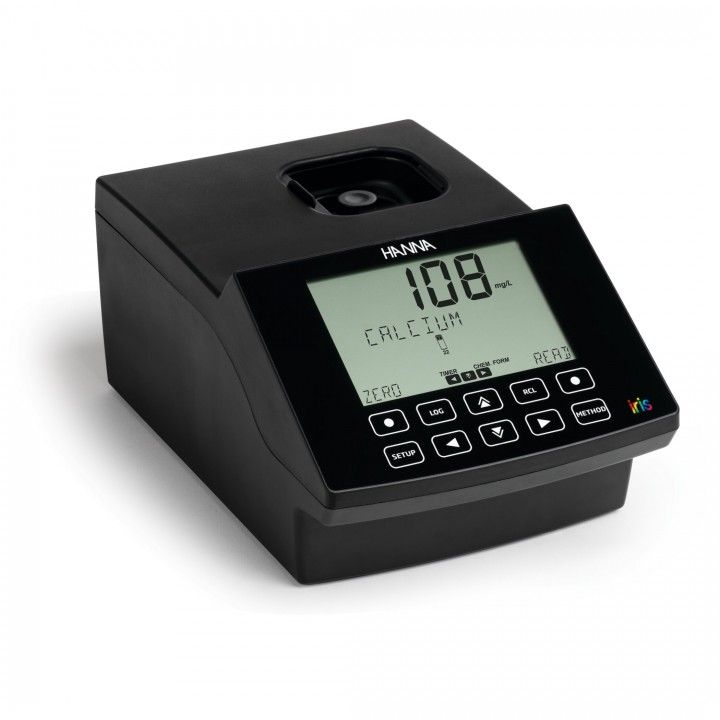

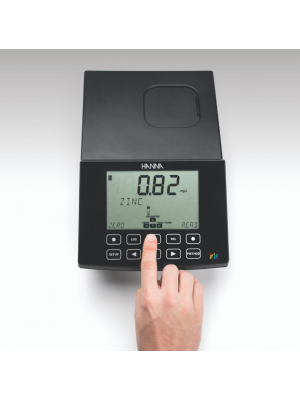

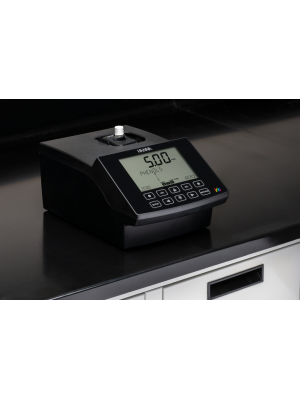

iris® Visible Spectrophotometer with Method Identification via Barcode Reader - HI802
Product Code : HI802-02
Category : Spectrophotometers
Catalog : iris®_visible_spectrophotometer_with_method_identification_via_barcode_reader_-_hi802_support.pdf
HI802 iris® visible spectrophotometer quickly identifies Hanna Instruments vial methods by reading the barcode on reagent vials across multiple methods that support the use of a single-zero measurement.
The barcode reader for method identification is removable to allow other methods and
cuvette adapters (included) to be used for maximum versatility. HI802 iris® visible spectrophotometer is portable and allows for measurement in the spectrum of all wavelengths of visible light and not just pre–specified wavelengths.
Spectrophotometers work by isolating light at specific wavelengths from white light. This compact meter incorporates a number of features that facilitate both fantastic performance and exceptional usability.
• Supplied with 103 factory methods
• Create up to 100 user methods

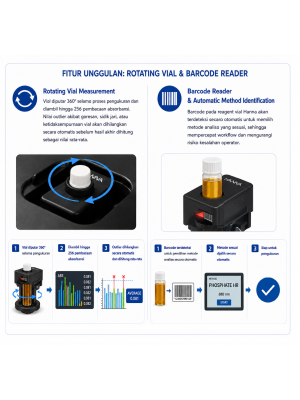

• Automatic method identification of vial samples
• Vial barcode reader
• Shared single-zero measurement across multiple vial methods
• 5 cuvette types (16 mm round, 22 mm round, 13 mm vial, 10 mm square, 50 mm rectangular) with automatic detection
• Data storage for 9999 measurements with ability to auto log results
• Simplified data transfer to a PC or Mac
• Field upgradeable firmware
• Rechargeable battery
| SKU | HI802 |
| Name | iris® Visible Spectrophotometer with Method Identification via Barcode Reader – HI802 |
| Wavelength range | 340 to 900 nm |
| Wavelength resolution | 1 nm |
| Wavelength accuracy | ±1.5 nm |
| Photometric range | 0.000 to 3.000 Abs |
| Photometric accuracy | 5 mAbs at 0.000 to 0.500 Abs, 1 % at 0.500 to 3.000 Abs |
| Measurement mode | Transmittance (%), absorbance and concentration |
| Sample cell | 10 mm square, 50 mm rectangular, 16 mm round, 22 mm round, 13 mm round (vial) with barcode |
| Wavelength selection | Automatic, based on the selected method (editable for user methods only) |
| Light source | Tungsten halogen lamp |
| Optical system | Split beam |
| Wavelength calibration | Internal, automatic at power-on (with visual feedback) |
| Stray light | <0.1 % T at 340 nm with NaNO? |
| Spectral bandwidth | 5 nm |
| Number of methods | Up to 150 factory (103 pre-loaded), up to 100 user |
| Data points stored | 9999 measured values |
| Export capability | csv file format, pdf file format |
| Connectivity | 1x USB A (mass storage host), 1x USB B (mass storage device) |
| Battery life | 3000 measurements or 8 hours* |
| Power supply | 15 Vdc power adapter, 10.8 Vdc Li-ion rechargeable battery |
| Environment | 0 to 50 °C (32 to 122 °F), 0 to 95% RH |
| Dimensions | 155 x 205 x 322 mm (6.1 x 8.0 x 12.6″) |
| Weight | 3 kg (6.6 Ibs.) |
